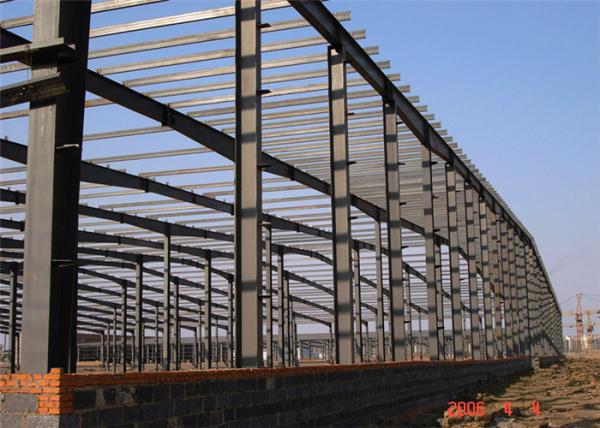

Light Steel Frame Building , Grey Steel Frame Workshop Up To 50
Years Lifetime
Technical Parameters:
1. Main Steel Structure: Use build-up steel column, welded H-beam
steel
2. Purlin: C-type steel
3. Roof panel: Single steel sheet or sandwich panel
4. Wall panel: The same with roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window
Specification
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |
FAQ:
F: Common type of the industrial building?
A: Portal frame is the usual type in the industrial workshop and
warehouse shed. Other types also could be designed and manufacturer
as per clients' request.
F: What's the quality grade of the steel structure components?
A: Q345 is used for main steel structure, Q235 is used for
secondary steel structure.
F: How about the delivery time?
A: Usually,within 25-30 days after the order confirmed, also
depends on the fabrication quantity.
F: How about the derust grade?
A: Ball blasting Sa2.5 on main steel structure; manual derust St2.0
on secondary steel structure.
F: What is kind panel used for the roof and wall?
A: Color corrugated steel sheet and sandwich panel could be used.
Sandwich panel performs well on the heat insulation,sound
insulation.Common sandwich materials are EPS, glass wool and PU.
F: How to install it?
A: We will furnish you the detailed construction drawing and the
construction manual, which could help you to erect and install the
building step by step. We also could send the engineer to your
local to help you if need
F: Maintenance:
A: Finish paint need be done after the frame installed, and do it
again after 6-8 months. In this way, the surface will stay more
longer.
|
|
