    Energy Saving Prefabricated Hall Metal Frame Steel Structure Construction

    Ask Lasest Price
    Brand Name : KAFAFAB
    Model Number : Steel structure
    Certification : BV,SGS
    Price : Negotiate
    Supply Ability : 2000T/MONTH
    Delivery Time : 6 weeks
    • Product Details
    • Company Profile

    Energy Saving Prefabricated Hall Metal Frame Steel Structure Construction

    Energy Saving Prefabricated Hall Metal Frame Steel Structure Construction


    Specifications:
    1) Main Steel: Q345, Q235, Q345B, Q235B etc.
    2) Column & Beam: Welded or Hot rolled H-section
    3) Connection method of steel structure: welding connection or bolt connection
    4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
    5) Door: Rolled up door or Sliding door
    6) Window: Plastic steel or Aluminum alloy window
    7) Surface: Hot dip galvanized or painted
    8) Crane: 5MT, 10MT, 15MT and more

    Drawings & Quotation:
    1) Customized design is welcomed.
    2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly.

    Design capability

    By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.



    Steel structure is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity. The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.


    Steel Structure Application Fields:

    We cater for every market from warehouses, workshops to 4S car exhibition centers, shopping mall, aircraft hangers, poultry & pig sheds, container houses, agricultural & commercial buildings and so on.


    Characteristics:

    1. Cost savings: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structure can be recycled into new steel products without reducing physical properties.

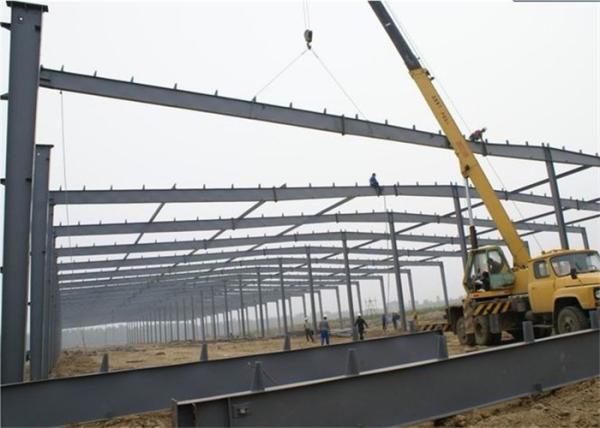

    2. Quick erection: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring on the management software to complete sooner.


    3. Health and safety: Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.


    4. Flexibility: Can be modified in the future for new application, loading conditions, vertical expansions and changes in owner’s desires in ways that other framing systems can not accomplish.


    Main parts of the steel structures and technical parameters:


    Main Steel Frame System
    Main structureH section steel Q345, alkyd painting, two primary painting, two finish painting.
    Roof purlinXZ160*60*20*2.5, galvanized
    Wall purlinXZ160*60*20*2.5, galvanized
    Intensive boltGrade 10.9
    Turn buckle boltM20+2, steel Q235, processing
    Anchor boltM24, steel Q235, processing
    Ordinary boltGalvanized bolt M20
    Ordinary boltGalvanized bolt M12
    Brace nutGalvanized bolt M12
    Bracing System
    Cross braceΦ20 round steel bar Q235, process and painted (alkyd painting)
    Angle braceL50*5 angle steel Q235, process and painted (alkyd painting)
    Column bracingΦ25 round steel bar Q235, process and painted (alkyd painting)
    Tie barΦ127*3 steel pipe Q235, process and painted (alkyd painting)
    Batter braceΦ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
    Wall & Roof System
    Roof panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
    Wall panelCorrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
    Edge cover0.4mm color plate, angle Alu.
    Fittings & accessoriesNails, glue etc.
    Unpowered ventilatorDiameter Φ600, stainless steel
    Sky lighting band1.2mm FRP, double layer
    Sliding doorsandwich panel door
    Roof drainage system
    Gutter0.5mm color steel plate
    Rainspout pipesΦ110 PVC pipe
    Price

    Basic Design Requirements: design Load: (very important)
    1. Snow load:

    2. Wind load:
    3. Seismic magnitude:

    4. Middle Column allowed or not:
    5. Project location:
    6. Length (side wall, m):
    7. Width (end wall, m):
    8. Wall Height (eave, m):
    9. Mezzanine or not? And usage:

    Building Purpose: we will recommend the best design for the purpose of the building
    A. Warehouse/Storage

    B. Factory
    C. Agriculture Barn

    D. Retail Store
    E. Repair/Mechanic Shop

    F. Office Space
    G. Medical Warehouse

    H. Animal Farm (please confirm what kind of animal)


    We have many production lines and strong production capacity as follows:


    3 heavy steel structure production lines

    5 light steel structure production lines

    5 C section steel production lines

    2 sandwich panel production lines

    Production capacity of steel structure components: 12000 tons

    Production capacity of various sandwich panels: 200,000 m2

    Total area of finished steel structure projects: 1.2 million m2
