    Truss Roof Steel Structure Workshop Building Construction

    Ask Lasest Price
    Brand Name : KAFAFAB
    Model Number : Steel structure
    Certification : BV,SGS
    Price : USD900~1200/T
    Supply Ability : 2000T/MONTH
    Delivery Time : 6 weeks after deposit and shop drawing confirmed
    • Product Details
    • Company Profile

    Truss Roof Steel Structure Workshop Building Construction


    Truss Roof Steel Structure Workshop Building Construction

    • Content:steel frame

    • Dimension: 85*40*10m(length*width*height)

    • Quantity:98 Tons

    • Contact value: USD 118,000

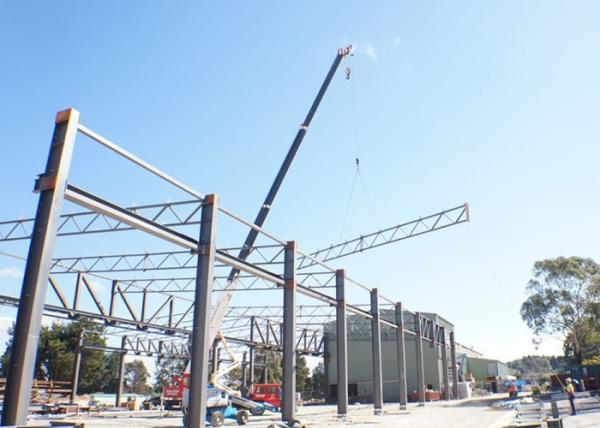

    • Description: This project is located in Australia. Total workshop area is 3500 sqms, with few columns-removed portal frame. This is design not make the trimming joist (chinese standard). But make the central big truss to make all the workshop as a whole.

    Truss Roof Steel Structure Workshop Building Construction


    During processing period: All the raw materials have been checked by third party, and also certificate will be neccessary. Tensile strength testing is applied in-house ( we are the only one have this testing machine In Qingdao). All Hand action during cutting will not be allowed.


    Before welding: All the welding machine will be checked, and gas must be sufficient to avoid welding line have porosity/ Crators / Cracks . Current will be enough to avoid the welding line not smooth.


    Blasting: we make the blasting as 2.0 grade ( australian standard). To ensure there will not rust before painting.


    Paint: within 2 hours mustbe painted to gurantee the blasting quality. this project we use EPOXY ZINC RICH PRIMER, TWICE PAINT 80 um. After primer paint, we make Epoxy Mio Barrior Paint 40 paint, that paint will ensure all the components will be not rust during long time shipment on the sea.


    Inspection: We make the Ultrasonic Testing In-house, Take record and make report in-house. After we check the components that will be ok. then we ask clients' Inspector come to our factory to check if the quality will be good to loading.





    >> Steel structure is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity. The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.


    >> Steel Structure Application Fields:


    We cater for every market from warehouses, workshops to 4S car exhibition centers, shopping mall, aircraft hangers, poultry & pig sheds, container houses, agricultural & commercial buildings and so on.


    >> Characteristics:


    1. Cost savings: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structure can be recycled into new steel products without reducing physical properties.


    2. Quick erection: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring on the management software to complete sooner.


    3. Health and safety: Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.


    4. Flexibility: Can be modified in the future for new application, loading conditions, vertical expansions and changes in owner’s desires in ways that other framing systems can not accomplish.


    Main parts of the steel structures and technical parameters:


    Main Steel Frame System

    Main structure

    H section steel Q345, alkyd painting, two primary painting, two finish painting.

    Roof purlin

    XZ160*60*20*2.5, galvanized

    Wall purlin

    XZ160*60*20*2.5, galvanized

    Intensive bolt

    Grade 10.9

    Turn buckle bolt

    M20+2, steel Q235, processing

    Anchor bolt

    M24, steel Q235, processing

    Ordinary bolt

    Galvanized bolt M20

    Ordinary bolt

    Galvanized bolt M12

    Brace nut

    Galvanized bolt M12

    Bracing System

    Cross brace

    Φ20 round steel bar Q235, process and painted (alkyd painting)

    Angle brace

    L50*5 angle steel Q235, process and painted (alkyd painting)

    Column bracing

    Φ25 round steel bar Q235, process and painted (alkyd painting)

    Tie bar

    Φ127*3 steel pipe Q235, process and painted (alkyd painting)

    Batter brace

    Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)

    Wall & Roof System

    Roof panel

    Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)

    Wall panel

    Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)

    Edge cover

    0.4mm color plate, angle Alu.

    Fittings & accessories

    Nails, glue etc.

    Unpowered ventilator

    Diameter Φ600, stainless steel

    Sky lighting band

    1.2mm FRP, double layer

    Sliding door

    sandwich panel door

    Roof drainage system

    Gutter

    0.8mm color steel plate

    Rainspout pipes

    Φ160 PVC pipe


    >> We have many production lines and strong production capacity as follows:


    3 heavy steel structure production lines

    5 light steel structure production lines

    5 C section steel production lines

    2 sandwich panel production lines

    Production capacity of steel structure components: 12000 tons

    Production capacity of various sandwich panels: 200,000 m2

    Total area of finished steel structure projects: 1.2 million m2
