    Pre-engineered Customed Light Steel Structure Workshop with Crane Beam

    Ask Lasest Price
    Brand Name : KAFA
    Model Number : Workshop
    Certification : ISO9000
    Price : 45~65usd/sqm
    Payment Terms : L/C, T/T
    Supply Ability : 40000sqms/month
    Delivery Time : 40days
    • Product Details
    • Company Profile

    Pre-engineered Customed Light Steel Structure Workshop with Crane Beam

    Pre-engineered Custom Design Prefabricated Light Steel Structure Workshop

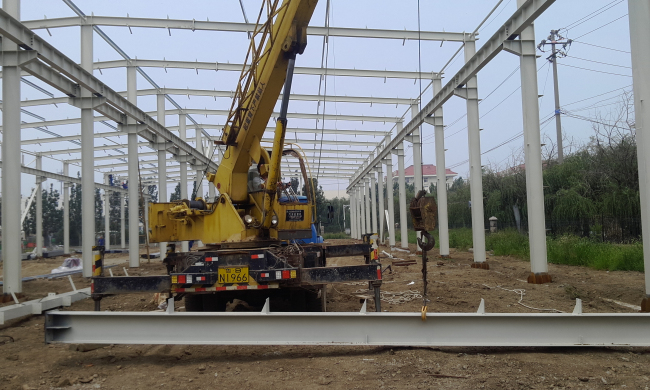

    • Project name: Haien Industrial workshop
    • Dimension: 60*40*10m(length*width*height
    • Wall: 0.5MM V820 steel corlor sheet+100mm glass wool+0.4mm steel corlor sheet
    • Roof: 0.5mm V820 Steel corlor sheet+100mm glass wool
    • Paint: Alkyd primer, middle grey. DFT 80um
    • Crane: 4pcs*5T (lifting weight)
    • Installation time: 20days
    • Drainage system: Outer gutter + 110mm downpipe


    1. Product Description



    2. Specification

    ItemsSpecification
    Main Steel FrameColumnQ235, Q345 Welded H Section Steel
    BeamQ235, Q345 Welded H Section Steel
    Secondary FramePurlinQ235 C and Z purlin
    Knee braceQ235 Angle Steel
    Tie RodQ235 Circular Steel Pipe
    BraceQ235 Round Bar
    Vertical and Horizontal SupportQ235 Angle Steel, Round Bar or Steel Pipe
    Maintenance systemRoof PanelEPS Sandwich Panel / Glass Fiber Sandwich Panel /
    Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
    Wall PanelSandwich Panel / Corrugated Steel Sheet
    AccessoriesWindowAluminiumn Alloy Window / PVC Window / Sandwich Panel Window
    DoorSliding Sandwich Panel Door / Rolling Metal Door / Personal Door
    RainspoutPVC
    Live load on RoofIn 120kg/Sqm (Color steel panel surrounded)
    Wind Resistance Grade12 Grades
    Earthquake-resistance8 Grades
    Structure UsageUp to 50 years
    Finishing OptionsVast array of colors and textures available
    Paint OptionsAlkyd paiting, two primary painting, two finish painting
    (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.



    3. Advantages

    (1). Free to design architectural drawings for you.
    (2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention.
    (3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs.
    (4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
    (5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
    (6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
