Proud of helping steel structure solutions
8 Years
| Ask Lasest Price | |
| Brand Name : | KAFA |
| Model Number : | Steel structure workshop |
| Certification : | ISO9000 |
| Price : | 45~60usd/sqm |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 20000 square meter per Month |
| Delivery Time : | 40 days |

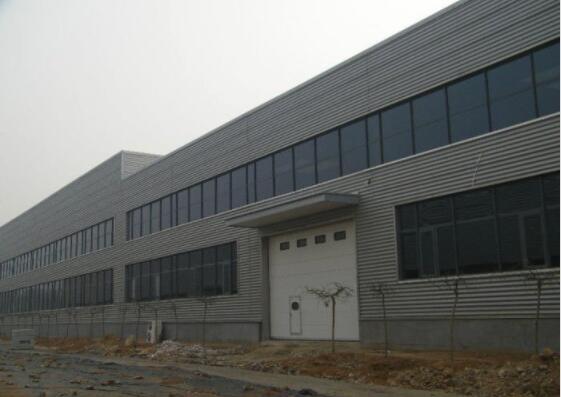

Large span heavy crane water-proof steel structure workshop
Project name: Weiqiao heavy industrial steel structure workshop
Dimension: 136*60*14m(length*width*height)
Wall: 0.7mm aluminum waved panel+100mm glass wool+0.5mm steel corlor sheet
Roof: 0.5mm steel corlor sheet+100mm glass wool
Ventilator: dust collector
Total weight: 404Tons
Total value: 720,000usd
Technical Parameters:
1. Main Steel Structure: Use build-up steel column, welded H-beam
steel
2. Purlin: C-type steel
3. Roof panel: Single steel sheet or sandwich panel
4. Wall panel: The same to roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window
Specification
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |
|
