    Australian Architectural Structural Steel For Newport Mosque Fabrication

    Ask Lasest Price
    Brand Name : KAFA
    Model Number : Musque
    Certification : ISO9001/2017
    Price : 1000~1200USD/T
    Payment Terms : T/T, Western Union
    Supply Ability : 200T/Month
    Delivery Time : 30~45days
    • Product Details
    • Company Profile

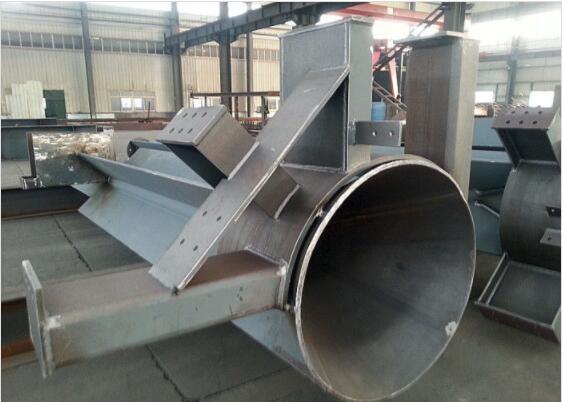

    Australian Architectural Structural Steel For Newport Mosque Fabrication

    Project Description:

    • Project name: Melbourne Newport Mosque
    • Content: structural steel
    • Quantity: 162tons
    • Total value: 412720usd
    • Description: The Newport mosque designed by Glenn Murcutt (Pritzker Architecture Award), It is a national welfare project . The total investment: 40millon usd, We supply all the structural steel. total weight is 268 Mts.

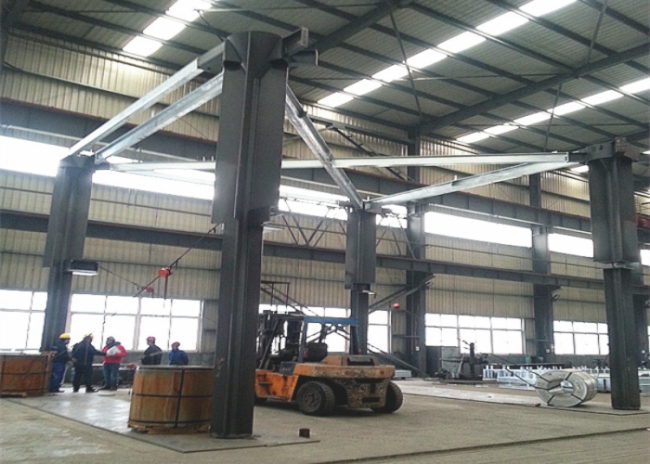

    Pre-assembly Texting In factory



    Installation

    Our equipment :

    No.Equipment nameTypeEquipment founction unit:mm
    1Gantry submerged arc
    welding machine
    LHAGantry height 1850 gauge
    4000,welding speed 150-1000/min
    2
    Double cantilever type welding machine
    LHA(2pcs)For workpiece length
    4000-15000.web plate height 200-2200
    flange width 200-800.flange thickness8-60.welding speed 240-2400/min
    3Blasting machineHP8016Bsection width 800 height 1600
    length 3000-12000(components)
    4Biger blasting machineHT1225 typesection width 1300 height 2500 length3000-20000(components)
    5H-beam assembling machine
    Z25for H beam dimension:Flange 200-800thickness6-60 web height 200-2500 web thickness 6-40
    6H-beam assembling machine
    HZJ15 typefor H beam dimension:Flange 200-800
    thickness6-40 web height 200-1500
    web thickness 6-32
    7
    H-beam straightening machine
    J600 typefor modify flange thickness≤20 width 150-600
    web height〉160
    8H-beam straightening machine
    YTJ-60Bfor modify flange thickness≤60
    width 200~800,
    web plate thickness ≤50,
    the componets material tensile strength o.s≤600MPa
    9C steel molding machine
    WH250 typeprocessing thickness 0.5-3
    max width 410.
    C beam section dimension 80*50,100*50
    10Z type of cold bending
    steel forming machine
    YXOOKY-72/92-
    120/300
    the max processiong thickness3.Z beam section dimension: YXOOKY180-70-65.200-70-65
    11plate shearing machineQ11-13*2500For the max shearing thickness: 13 max width: 2500 Sheet metal tensile strength
    <50n/mm2
    12QC11Y-20*2500the max cutting thickness20 width: 2500 Sheet metal tensile strength 450-650n/mm2
    13universal radial drilling machineZ3050X16(1) typethe max drilling diameter Φ50,we have other 2universal radial drilling machine can drill Φ32.
    14Numerical control plate drilling machine
    CDMP2012The thickness of the clamp
    15-80 Max drill Φ50 the max components dimension 1200*2000
    15bending machineWE67Y-100T/5000the max width 5000 max thickness 14
    16multi burner cutting machineCG1-4000Afor cutting length 3300 width 15500
    17Color plate pressure plate
    forming unit
    YX15-255-900thickness 1.0 width1000 length 900
    18Color plate pressure plate
    forming unit
    YX-18-250-820thickness 1.0 width1000 length 820
    19Color plate pressure plate
    forming unit
    YXOOKM51-380-760thickness 1.0 width1000 length 760
    20Computer control corlor sheet processing unit
    YX75-200-600thickness 1.0 width1000 length 600
    21Color plate pressure plate
    forming unit
    YX51-471thickness 1.0 width600 length 460
    22
    Curve nc pipe cutting machine
    BCNCG-1500VIdiameter Φ60-800 length 550-12000
    thickness5-50
    23Small CNC cutting machine
    HNC-2100for max length 2300 width 2100
    thickness 5-150
    24portal craneLD-10T,LD-20T10tons and 20 tons, lifting height: 9m
    25Semi gantry crane
    LD-5T15pcs, 5 tons, lifting height: 6m
    26single-girder craneLD-3T,LD-5T5pcs, 3tons and 5 tons, lifting height: 6m
    27single-girder craneLD-3T,LD-5T3ton 1pc; 5ton 1pc lifting height:9M
    28forkliftCPCD50Hlifting weight : 5T height: 3M,
    29forkliftCPCD30Hlifting weight :3T height: 3M,
    30gas welding machineKR50011 pcs
    31steel tube
    processing line
    (welded tube)
    HG76
    size: 40*80,100*100,120*80





    What we can do for you ?

    1 supply you the high quality steel structure products with competitive price.

    2 we can design as your detailed requests to ensure our product is only the best for you.

    3 if you have drawings, we could help you modify and optimise it. that will make your design is cost- effective design. make it easy installation and save the material. also need to meet your requests. (that is our unique advantage)

    4 we could supply the installation service. we can send our engineers to help you install the steel structure. and if neccessary we also could send workers to install it, but i do not think that is a good idea to make it cost-effective. O(∩_∩)O

    5 make the tolerance of weight within 6%, (between construction drawings and actual weight).


    Loading and pakage

    At currently we have three types loading plan as below:

    1 We use 4O"HQ container, This way we loading and unloading is very slow and diffcult. But this way is the lowest cost.

    2 We use 40" OT container, we can load all members easily. and good way to protect the possible damage during shipping. But that will cost more ocea freight.

    3 We still use 40" HQ, but we could make a steel pallet to put all members on it. And then we push it into the container, this way is the fastest way to loading and unloading, and we can make the pakage to project any damage during shipping. But the steel pallet will cost about 800 usd per pc.
