Color sheet and insulation roof Steel Garment Workshop With Concrete Wall

STEEL STRUCTURE

Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.

STEEL BUILDING CHARACTERISTICS

1.Light-weightness and more resistance to earthquakes and strong winds.

2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.

3.Shorter construction period with the help of modularity and error-free prefabrication of building elements.

4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage of materials in the factory.

5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of the space.

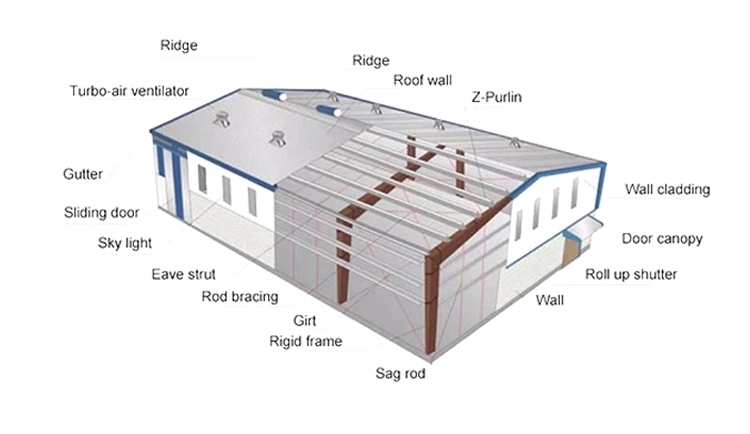

STRUCTURAL DRAWING

Main Steel Frame	H section steel	Q235/Q345 steel 8mm/10mm
	Welding	Automatic submerged arc welding
	Rust removal	Sand blasting
	Surface finish	Alkyd paint or galvanized
	Intensive bolt	M20,Grade 10.9
Supporting System	Angle brace	L50x4,Steel Q235, processed and painted
	Horizontal brace	Φ20, Steel Q235, processed and painted
	Column brance	Φ20, Steel Q235, processed and painted
	Tie rod	Φ89*3, Steel Q235, processed and painted
	Ordinary bolt	M12 Galvanized bolt
Roof	Purlin	C160602.5,Steel Q235, galvanized and painted
	Roof panel	Sandwich panel or corrugated steel sheet
	Sky light	6mm thick PVC
	Accessories	Glass cement, self-tapping screws, etc.
	Edge cover	0.4mm steel sheet profile trimming
	Gutter	0.4mm thick sheet steel profile or galvanized sheet
	Down pie	Φ110PVC
Walls	Purlin	C160602.5,Steel Q235, painted
	Wall	Sandwich panel or corrugated steel plate
	Accessories	Glass cement, self-tapping screws, etc.
	Edge cover	0.4mm steel sheet profile trimming
	Ventilation	Ventilation ball
	Doors & windows	Rolling door/sliding door PVC/alu/steel/window

Product Description

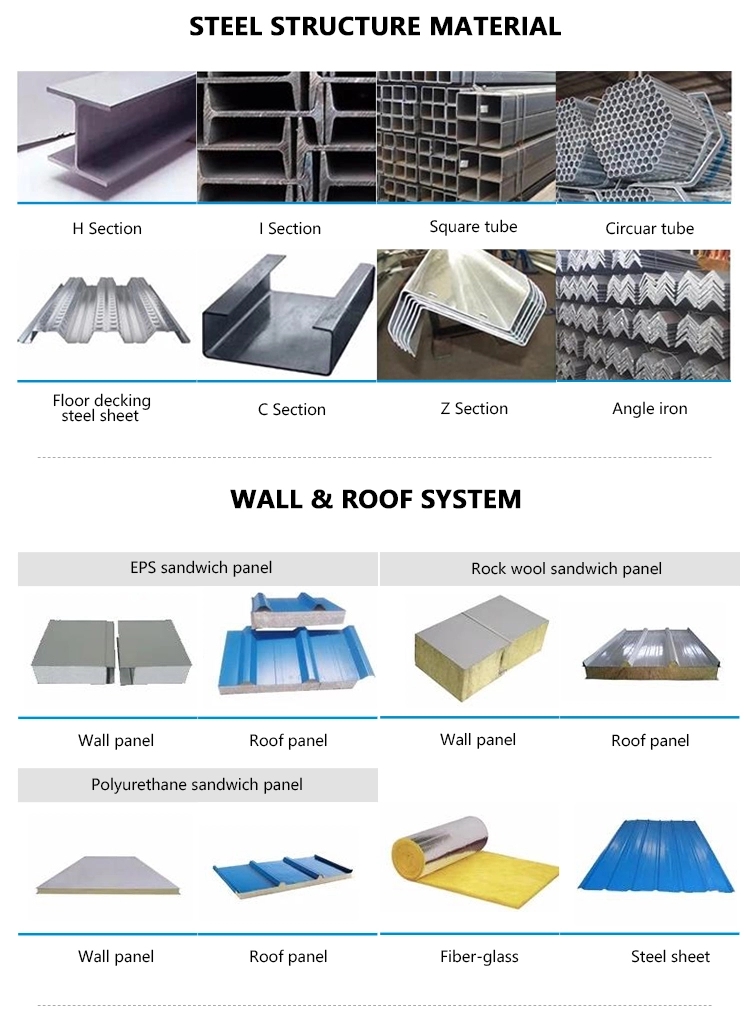

A: Components of galvanized light steel structure

1) Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200

2) Column: C style steel, H shape

3) Floor beam: C style steel,200*40*2.0mm

4) Floor: light magnesium board (our patent)

5) Stair: metal

6) Roof truss: angle steel

7) Purling tube metal

8) Roof panel: corrugated sandwich panel with color steel two sides

9) Door: aluminum frame with panel same as wall, with lock

Remark: this list is for your reference but the elements can vary.

Technique Index

Earthquake resistante: 8 fission intensity

Wind pressure: <31m/s about 10 grade

Roofing snow load; <80kg/m2

Roofing live load: 50kg/m2

1. Economic : quick installed and saving the cost of construction
2. the period of delivery is very short and can installed very easily
3. Reliable quality: mainly produced in the factory and control the quality
4. big space: the max span of prefab steel structure can reach 80meters
5. antiseismic: because the weight is light
6. Flexible: can be dismantled and enlarged
7. Beautiful appearance: can use different colors
8. Long lifespan: can be used more than 30 years

B: The advantages of light steel structure

1) Economic : quick installed and saving the cost of construction

2) Reliable quality: mainly produced in the factory and control the quality

3) big space: the max span of prefab steel structure can reach 80meters

4) antiseismic: because the weight is light

5) Beautiful appearance: can use different colors

6) Long lifespan: can be used more than 50 years

C: If you need us to design the light steel building for you, we need to know the following:

1. rain load

2. live load

3. snow load

4. wind load

5. whether using the crane 6. length,wide,height

D : Features

Attractive design- -the whole house looks beautiful and elegant. The inner, outer walls and the roof boarding all use the color steel sandwich panel, the material is polystyrene foam.
Light weight and convenient in shipping.

Easy to assemble and dismantle: the house can be rebuilt for dozens of times. The assembling only requires simple tools: plugs and screw.
Firm structure- the house adopts steel frame structure ans sandwich panels.
Our houses are completely waterproof.
The house can be customized. The roof, wall, door, windows can be chosen by the customer.
Durable--the steel frame parts are all processed with anti-corrosion coating and can be used for as long as 20 years.

E : Components

1) Wall panel: sandwich panel with color steel two sides and EPS foam filling
width:1200mm 1k=1200

2) Column: C style steel, H shape

3) Floor beam: C style steel,200*40*2.0mm

4) Floor: light magnesium board (our patent)

5) Stair: metal

6) Roof truss: angle steel

7) Purling tube metal

8) Roof panel: corrugated sandwich panel with color steel two sides and EPS foam filling

9) Wave height: 35mm

10) Trim of tile: color steel sheet

11) Door: aluminum frame with panel same as wall, with lock

12) Rust-proof way of building: painted or GI.

Remark: this list is for your reference but the elements can vary.

C: Steel structure warehouse

Specifications	1)Size:MOQ is 10m2, width X length X eave height, roof slope
	2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
	3)Height: 3-10m
	4)Slope: 1/20, 1/10,1/5,1/3
	5)column distance: 6-9m
	6) Base:Cement and steel foundation bolts
	7) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
	8) Bracing: X or V or other type bracing made from angle, round pipe
	9) C or z purlin:Size from C120~C320, Z100~Z200
	10) Roof and wall panel: Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
	11)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
Design Parameters	1)Live load on roof(KN/M2)
	2)Wind speed(KM/H)
	3)Snow load (KG/M2) if have
	4)Earthquake load if have
	5)Crane (if have) ,Crane span, crane lift height, max lift capacity
	6)Doors and windows: dimension, quantity, position
	7)The materials on the roof and the wall
	8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
	9) If you have other requirements,please also inform us.
	10) It is better if you have your own drawings. please send them to me.
