waterproof and heat preservation thermal insulation steel structure warehouse
Project name: waterproof and heat preservation thermal insulation steel structure warehouse
Located: Cote d'lovire
Investment: 135000usd
Dimensions: 100*30*8m ( Length*widht* eave height)
Wind load: 120km/h ( 0.6kn/sqm)
Roof panel: 0.5mm color sheet +100mm glass wool +0.4 mm color sheet
Wall: 6m height brick wall+2m 0.5mm color sheet +100mm glass wool +0.4 mm color sheet
Application : Logistic warehouse
Specification
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel /Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS,ISO9001:2008,ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |
Characteristics
1. Different types and sizes according to customer's needs, large or small, wide span: single span or multiple spans, the max span is 36m without middle column.
2. Low cost and maintenance: unit price range from USD35/m2 to USD65/m2 according to customers request.
3.Fast construction and easy installation: time saving and labor saving, all the items are factory- made,pre-cut,pre-welded, pre-drilled,pre-painted.
4.Reduced construction waste, long using lifespan: up to 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.
1.Steel structure components will be in mude packaging with proper protection.
2.Sandwich panels will be covered with plastic film.
3.Bolts and other accessories will be loaded into woodern Boxes

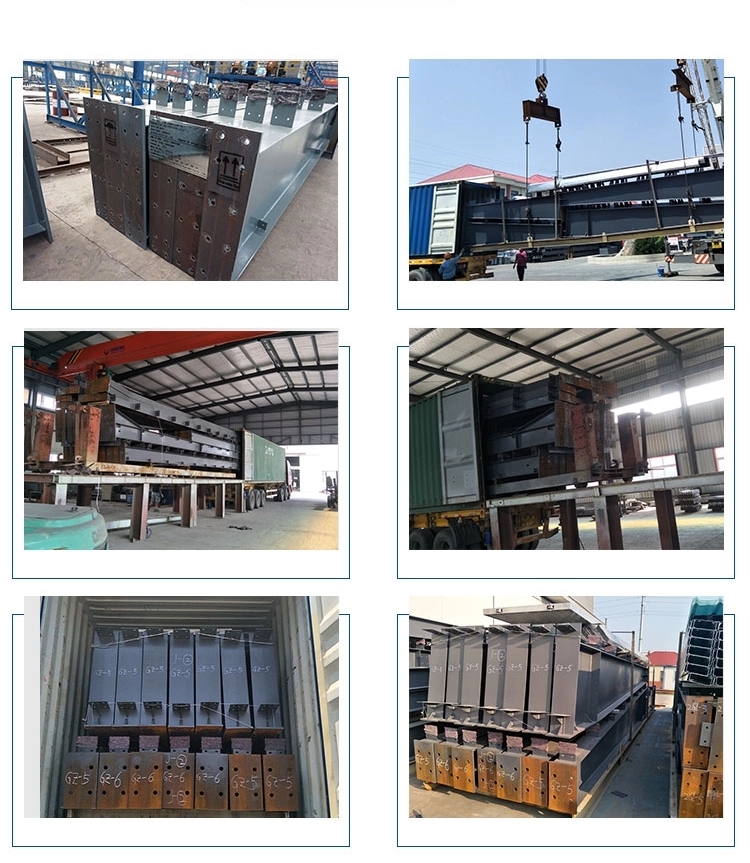

All the structure components, panels, bolts and sorts of accessories will be well packed with standard package suitable for ocean transport and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift byour skilled workers, who will prevent the goods to be damaged.
Good relationship with many vessel companies to make sure the transportation smooth.
|
|
