    Welded EPS Roof DFT 80um Steel Structure Warehouse

    Ask Lasest Price
    Brand Name : KAFAFAB
    Model Number : Steel structure workshop
    Certification : ISO
    Payment Terms : L/C, T/T
    Supply Ability : 20000 square meter per Month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

    Welded EPS Roof DFT 80um Steel Structure Warehouse

    Welded H-beam DFT 80um steel structure warehouse


    Steel structure warehouse


    Regardless of the size, kafa steel structure building is an ideal building system for metal warehouses and distribution centers. Our prefabricated building system provides the storage industry with advantages that other types of buildings cannot provide.


    Faster: Using kafa's prefabricated building system can save up to one-third of construction time. All components are cut, welded and drilled in the factory for quick assembly on the job site. Usually, within six to seven weeks from the time the order is placed, the delivery speed will also increase, so that your material handling operations can start and run as quickly as possible. (Some standard model metal warehouse buildings can be delivered in just four weeks.)

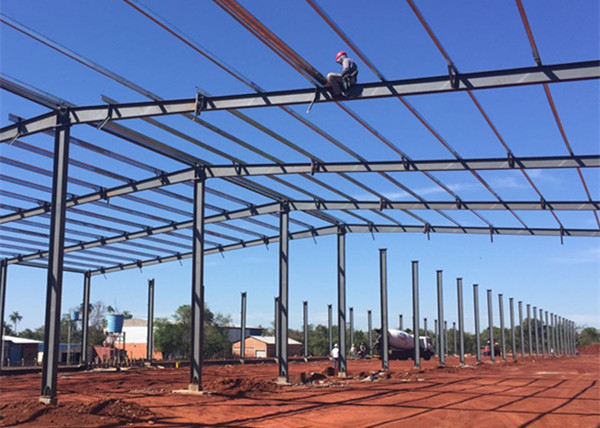

    The steel warehouse frame under construction is durable: the kafa steel structure is sturdy and durable, which can maintain structural integrity, beauty and value for decades.


    Non-combustible: Wood is the first source of combustible substances in warehouse fires. Frame timber is the second largest source. The steel frame is non-flammable, cannot be ignited, and cannot add fuel to the fire.


    Clear span: Kafa's rigid frame steel frame is very strong and can span a larger area without cumbersome internal support columns. This allows warehouse operations more flexibility in storing and moving products quickly and efficiently. The width of kafa standard steel warehouse can be up to 150' without any internal support; customized design can clear up to 200' or larger width. The load-bearing column in the center of the building can reach a width of 480'. The kafa building can be any length you need. The standard height is 40', allowing warehouse owners to use vertical dimensions to increase SKU (stock keeping unit) capacity. Custom quotations are available even for taller buildings. If necessary, the metal warehouse plan can also include mezzanine.


    External options for busy steel warehouses: Kafa metal warehouse buildings can be designed with additional loads to meet sprinkler systems, cranes or any other special needs. Kafa offers a variety of exterior options, including colorful, durable steel wall panels and roof panels. The exterior can also be decorated with brick, stone, upward-sloping concrete, glass, stucco or any other exterior wall of your choice. Please see our metal construction options page for more details and other options available on our steel warehouse construction, including skylights and overhead doors


    ItemsSpecifications
    Main Steel FrameColumnQ235,Q345 Welded H Section Steel
    BeamQ235,Q345 Welded H Section Steel
    Secondary FramePurlinQ235 C and Z Purlin
    Knee BraceQ235 Angle Steel
    Tie RodQ235 Circular Steel Pipe
    BraceQ235 Round Bar
    Vertical & Horizontal supportQ235 Angle Steel,Round Bar or Steel Pipe
    Maintenance SystemRoof Panel

    EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

    Corrugated Steel Sheet

    Wall Panel

    EPS , Glass Fiber , Rock Wool , Pu Sandwich Panel

    Corrugated Steel Sheet

    AccessoriesWindowAluminum Window, Plastic Steel Window
    DoorAluminum Door, Rolling Metal Door
    RainspoutPVC
    FastenerHigh Strengh Bolts,Normal Bolts,Chemical Bolts
    Ventilation SystemNatural Ventilator,Ventilation Shutters
    Live Load on RoofIn 120kg Sqm (Color steel panel surrounded)
    Wind Resistance Grade12 Grades
    Earthquake-Resistance8 Grades
    Structure UsageUp to 50 years
    TemperatureSuitable temperature -50°C~+50°C
    CertificationCE, SGS,ISO9001:2008,ISO14001:2004
    Finishing OptionsVast array of colors and textures available

    Whether you need a modest 5,000 square foot storage facility or an imported giant warehouse of 500,000 square feet or more, kafa is the best choice for your material handling business. Our experienced technical consultants can help you create an ideal warehouse that meets your business needs. Call kafa immediately to get free consultation about steel warehouse: 86--13553039170
