Proud of helping steel structure solutions
8 Years
| Ask Lasest Price | |
| Brand Name : | KAFA |
| Model Number : | Steel workshop-014 |
| Certification : | ISO 9001 |
| Price : | Negotiate |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 20000 square meter/month |
| Delivery Time : | 30-45days |

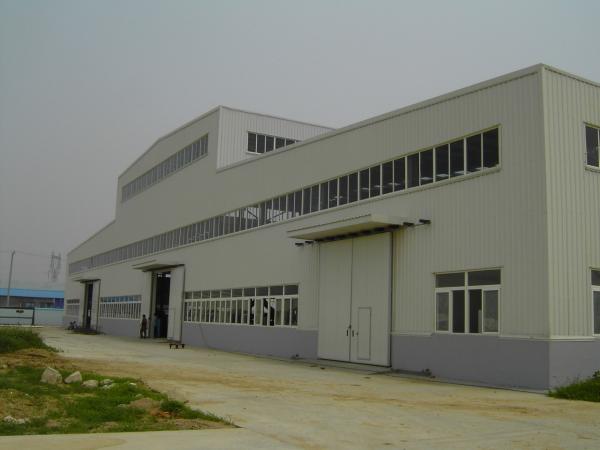

Assemble Fast Seismic Steel Workshop
The main load-bearing components of the steel workshop are steel structures, including steel roofs, steel beams, steel basements, walls and roof support systems.
The steel workshop is very durable. They are strong enough to withstand heavy snow, high winds and strong earthquakes. Steel panels can also be coated with aluminum compounds to prevent rust and increase panel life.
The panels in the steel structure workshop are refined so that they overlap when assembled together. This leaves no openings, which insulates the building from the outside world and helps to make the building warm in winter and cool in summer, thereby saving energy costs.
The steel structure workshop can quickly complete all the steel structures in the workshop and on-site assembly, bolt connection fast installation, small workshops can complete the installation within 1-2 months, saving manpower, steel structure workshops can use monochromatic panels, EPS sandwich panels and other single-layer thermal insulation, good thermal insulation effect, partitions, good seismic performance of steel structure workshops,
The steel structure is a flexible structure, which can effectively reduce the earthquake response and disaster impact, and is highly conducive to earthquake resettlement.
| Description | ||
| Main Components | Base | Concrete and steel foundation anchor bolts |
| Main frame | Hot Rolled or Welded H-Section Steel | |
| Material | Q235B, Q345B or others as per client's requests | |
| Purlin | C/Z purlin: Size from C120~C320, Z100~Z320 | |
| Bracing | X-type or other type, angle or round pipe | |
| Bolt | Plain or High-strength bolt | |
| Roof & wall | EPS / Rockwool / PU Sandwich panel or colored steel sheet | |
| Door | Electric flat door | |
| Window | Aluminum or PVC window | |
| Surface Coating | Anti-rust Paint or Hot Dip Galvanize | |
| Sheet | 0.3-0.8mm galvanized or color coated steel sheet | |
| Accessories | Translucent skylight sheet, Ventilators, etc. | |
| PVC Down pipe, Galvanized / SS304 gutter, etc. | ||
| Usages | 1. Workshop, warehouse, plant, storage | |
| 2. Steel web frame structure | ||
| 3. High rise building project | ||
| 4. Others steel structure buildings | ||
| Packing | Main steel frame without packing load in 40' OT or 40'HQ | |
| Roof and wall panel load in 40' HQ | ||
| Drawing | By client or RPIC | |
| Design Parameters | If need design from Honkae, please supply following parameters: | |
| 1) Length, width, eave height, roof apex | ||
| 2) Live Load, Wind Speed, Seismic Load, Snow Load etc. | ||
| 4) Quantity and sizes for doors and windows | ||
| 5) Other information if necessary | ||
The advantages of steel structure workshop are as follows:
1. Features: fast and flexible assembly, safe and reliable, heat and sound insulation, waterproof and fireproof;
2. Cost-effectiveness: quick and easy installation greatly shortens the construction time and reduces the cost;
3. Durability: The overall structure is easy to maintain, and the service life exceeds 50 years.
4. Perfect design: The perfect design completely avoids leakage and water seepage. At the same time, it also meets the national fire protection standards.
5. Carrying capacity: It can resist the influence of strong wind and earthquake, and withstand heavy snow.
|
|
