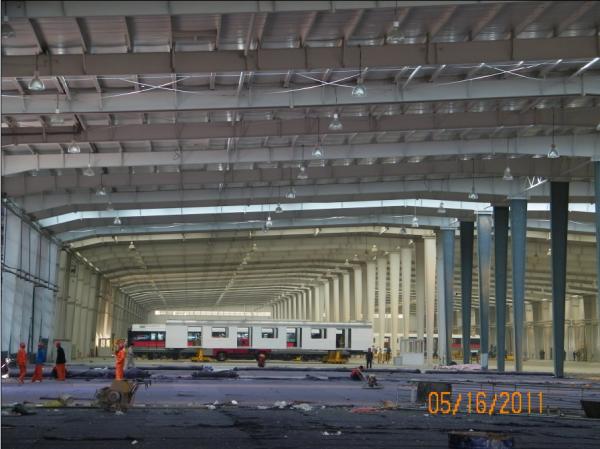

Anti Earthquakes Z Shaped Q235 Prefabricated Steel Warehouse Construction
Our prefab steel structures have been pre-cut, pre-drilled and ready to be assembled quickly and efficiently. Steel structure buildings can be used in almost any building application: agriculture/barn/aircraft hangar/welding workshop/business center/garage/warehouse/suburban buildings/warehouse/workshop, etc.
Steel structure building warehouse/workshop is a new type of light steel structure building system. It consists of the main steel frame of H-shaped steel, Z-shaped steel and U-shaped steel, and the main steel frame composed of roof and walls of various panels and other components is formed as windows , Doors and cranes.
>> Main parts of the steel structures and technical parameters:
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.4mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.8mm color steel plate |
| Rainspout pipes | Φ160 PVC pipe |
Steel structure characteristics
1. Light weight, greater resistance to earthquakes and strong
winds.
2. Due to the low maintenance cost and the highest quality
materials such as galvanized steel, it is sustainable and reduces
life cycle costs.
3. With the help of modular and error-free prefabrication of
building components, shorten the construction period.
4. Because of the reusable steel parts, and reducing waste by
effectively using materials in the factory, it is environmentally
friendly.
5. Function: Repositionable, replaceable and load-bearing wall and
the function provided by effective use of space. Prefabricated
steel warehouse / workshop / hangar / hall steel structure price
|
|
